Composite Blinds Installation
Installing your blinds is really easy with our simple installation guides!
ITEMS: TOOLS REQUIRED:
- Composite blind 1. Cordless drill
- Brackets and screws
- Pelmet clip
Composite Blinds Inside fit
Step 1 Inside fit

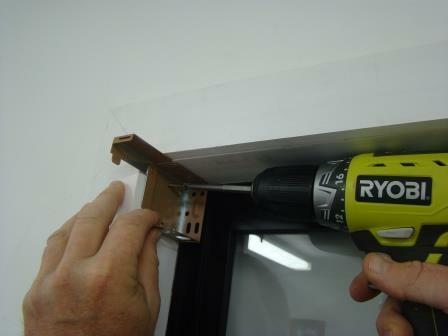

 | Place left bracket in left corner of window frame. Bracket arm must be facing front. Screw bracket into side or top of frame using 2 screws. Repeat on opposite end If using a centre bracket, screw the widest end into the top of the frame. TIP: Take care not to put the centre bracket in the way of the ladder tapes which are inside the headrail. |
Step 2 Inside fit

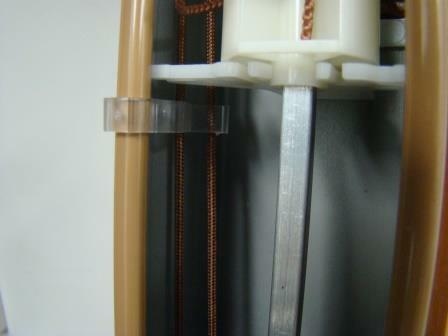

 | Take cords out of headrail. |
Step 3 Inside fit

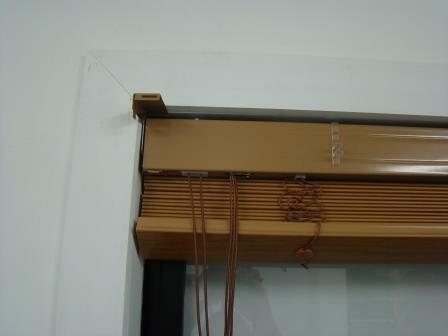

 | Place headrail into brackets. For larger binds you may need help holding the blind at the other end. Close arms of brackets until they click into place. |
Step 4 Inside fit
 | Attach Pelmet securely by removing the white strips on the black Velcro patches on the track. |
Composite Blinds Outside fit
Step 1 Outside fit

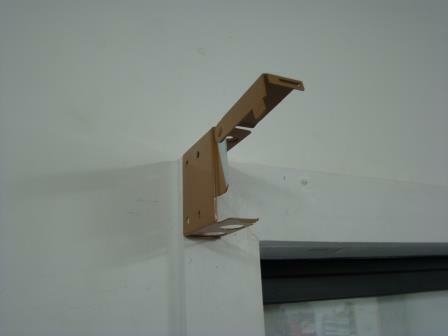

 | Place left bracket in left corner of window frame. Bracket arm must be facing front. Screw bracket into side or top of frame using 2 screws. Repeat on opposite end If using a centre bracket, screw the widest end into the top of the frame. TIP: Take care not to put the centre bracket in the way of the ladder tapes which are inside the headrail. |
Step 2 Outside fit
 | Take cords out of headrail. |
Step 3

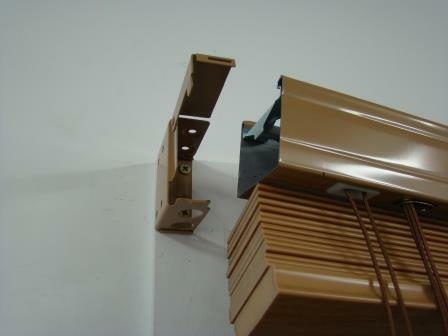

 | Place headrail into brackets. For larger binds you may need help holding the blind at the other end. Close arms of brackets until they click into place. |
Step 4

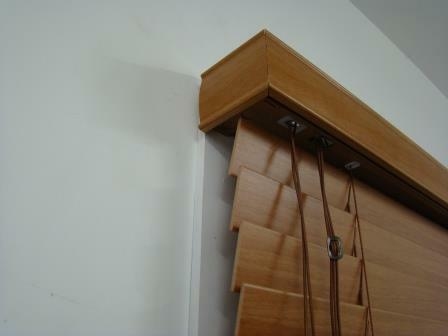

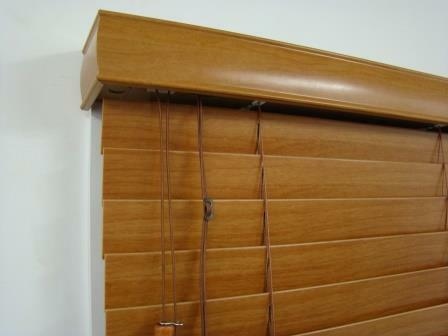

 | Attach Pelmet securely by removing the white strips on the black Velcro patches on the track. |
Step 5

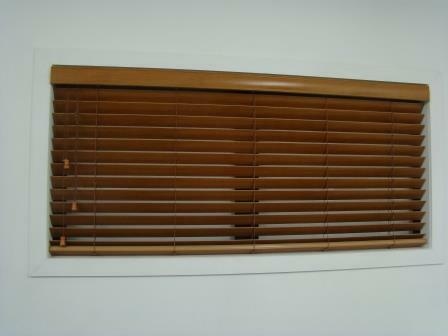

 | Blind finished. |
